Connecting your equipment

English

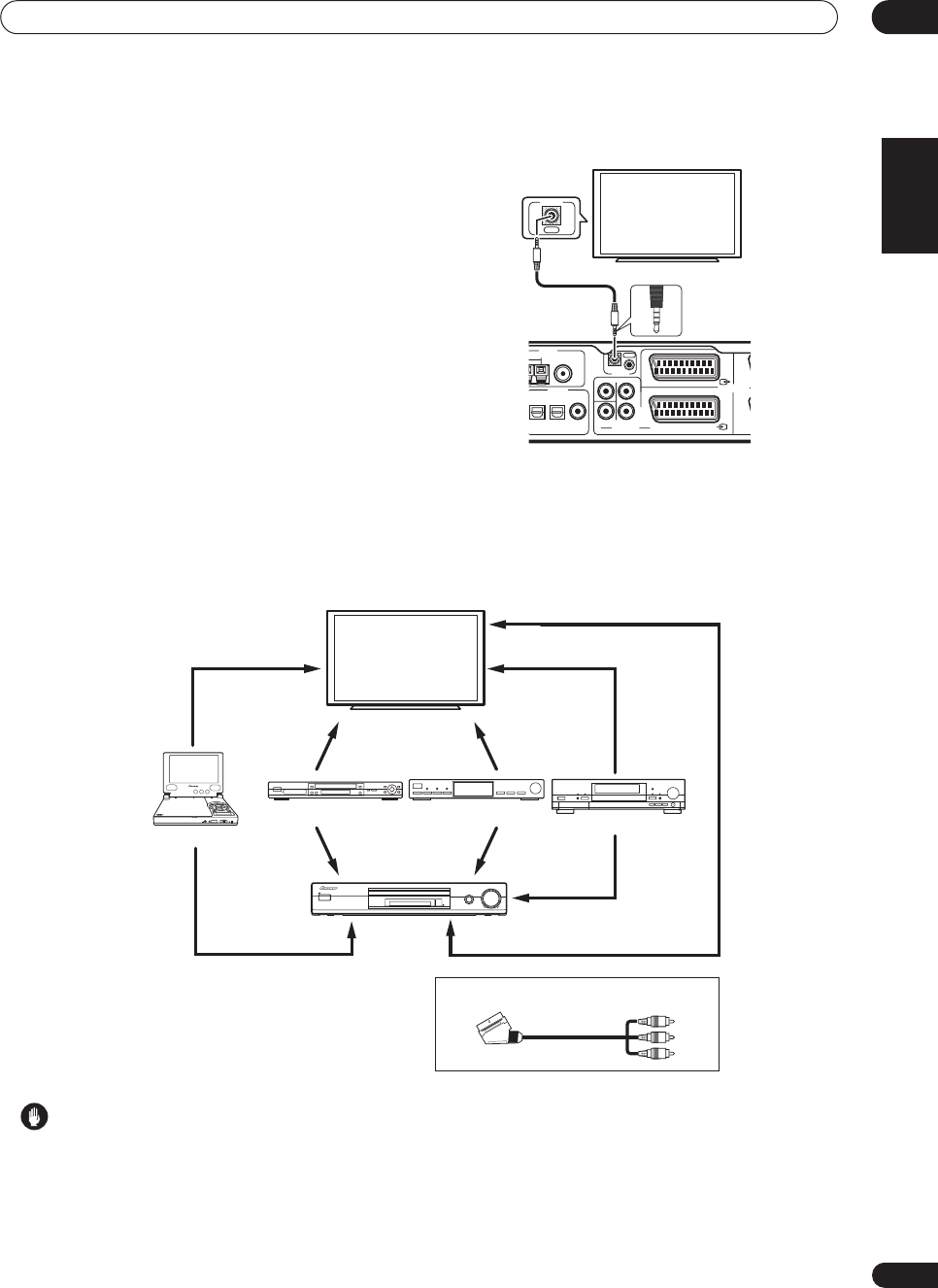

Using this receiver with a Pioneer plasma display

If you have a Pioneer plasma display (models PDP-

504HDE, PDP-434HDE), you can use the supplied SR+

cable to connect it to this receiver and take advantage of

various convenient features, such as automatic video

input switching of the plasma display when the receiver

input is changed.

• Use the supplied 3-ringed miniplug SR+ cable to

connect the CONTROL IN jack of this receiver with

the CONTROL OUT jack of your plasma display.

Before you can use the extra SR+ features, you need to

make a few settings in the receiver. See

SR+ mode for

Pioneer plasma displays

on page 40 for detailed

instructions.

To make the most of the SR+ features, you should

connect your source components (DVD player, etc.) in a

slightly different way to that described in this chapter. For

each component, connect the video output directly to the

plasma display, and just connect the audio (analog and/

or digital) to this receiver.

Caution

• When the receiver is connected to a plasma display

using an SR+ cable, if the plasma display is switched

off, you cannot use the remote to control the receiver.

OUT

CONTROL

COAX

SUB WOOFER

CENTER SURROUND

CONTROL

AV CONNECTOR

AUDIO IN (5.1CH) DVD IN

VIDEO IN/OUT

FM UNBAL 75Ω

AM LOOP

ANTENNA

OUT

STB

(DVD)

OPT1

DVR/TV

OPT2

DVD

(STB)

DIGITAL IN

VSX-C501

Pioneer plasma display

SOUND MODE

INPUT SELECTOR

MASTER

VOLUME

PHONESADVANCEDNEO:6DTS

STANDBY/ON

PULL-

OPEN

2DIGITAL 2PRO LOGIC

AV DIRECT

DOWN



DVD player

VSX-C501

Pioneer plasma

display

Satellite receiver, etc

AV3 (SCART)

AV4 (RCA)

AV1 (SCART)

AV2 (AV3) (SCART)

MONITOR OUT

STB IN (or OPT1)

DVR/TV IN/OUT (or OPT2)

VIDEO

IN/OUT

FRONT

INPUT

DVD IN (or COAX)

DVR, VCR, etc.



DIGITAL OUT (OPTICAL)

PHONES

HOLDON/OFF

COLOR BRIGHT MONITOR

Portable DVD player, etc.

RCA pin to SCART adapter (not supplied)

i/o link.A select

vsx-c501(WY).book 19 ページ２００３年５月２２日　木曜日　午前１０時２９分
